DESCRIPTION

Axial impulse fans suitable for installation in underground car parks and/or tunnels, especially designed and certifi ed for fi re smoke and hot gases extraction in case of fi re. CC-JD HT are “dual purpose” fans, i.e. they can provide both normal ventilation (carbon monoxide removal) and smoke extract in case of fi re.
In the standard confi guration for normal ventilation (CO extract), the series can be used at the temperature of +50°C temperature range. The fi re smoke extraction models (HT) are CE certifi ed to F200, F300 class, in compliance with Standard EN12101-3 and guaranteed to operate at 300°C for 2 hours by the independent notifi ed body Applus.
(CC-JD) The special impulse induction fans technology represent the most innovative and costeffective alternative to traditional duct mechanical extraction systems: the drastic reduction of installation costs (complete removal of ducted and grilled systems) and the considerable running cost savings ensured by the fsystem distinctive features (ventilation / extraction can be partial and only if necessary) are only two of the multiple benefi ts of car park ventilation systems based on CC-JD / C fans.

GENERAL DESCRIPTION

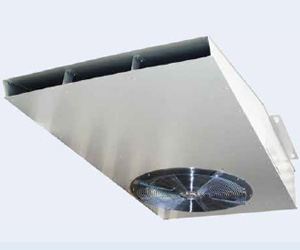

Axial impulse fans suitable for installation in underground car parks and/or tunnels, especially designed and certifi ed for fi re smoke and hot gases extraction in case of fi re. CC-JD LP HT are “dual purpose” fans, i.e. they can provide both normal ventilation (carbon monoxide removal) and smoke extract in case of fi re.
They differ from the series CC-JD HT for their octagonal shape and their extreme compactness and Low Profi le that allows an installation in garages with strong height limitations.
In the standard configuration for normal ventilation (CO extract), the series can be used at the temperature of +50°C temperature range. The fire smoke extraction models (HT) are CE certified to F300/120 class in compliance with Standard EN12101-3 by the independent notified body Applus.
The special impulse and induction fans tech-nology represent the most innovative and cost-effective alternative to traditional duct mechani-cal extraction systems: the drastic reduction of installation costs (complete removal of ducted and grilled systems) and the considerable running cost savings ensured by the system distinctive features (ventilation / extraction can be partial and only if necessary) are only two of the multiple benefi ts of car park ventilation systems based on CC-JD / C fans.

DESCRIPTION

Centrifugal induction fans designed and suitable for installation in underground car parks and/or tunnels, especially designed and certifi ed for fi re smoke and hot gases extraction in case of fi re. CC-JC HT are “dual purpose” fans, i.e. they can provide both normal ventilation (carbon monoxide removal) and smoke extract in case of fi re.
The series is suitable for continuous running at the temperature of 40°C and is CE certifi ed to F300 class, in compliance with Standard EN12101-3 and guaranteed to operate at 300°C for 2 hours by the independent notifi ed body Applus
The special impulse (CC-JD) and induction (CCJC) fans technology represents the most innovative and cost-effective alternative to traditional duct mechanical extraction systems: the drastic reduction of installation costs (complete removal of ducted and grilled systems) and the considerable running cost savings ensured by the system distinctive features (ventilation / extraction can be partial and only if necessary) are only two of the multiple benefi ts of car park ventilation systems based on CC-JC/D fans.
